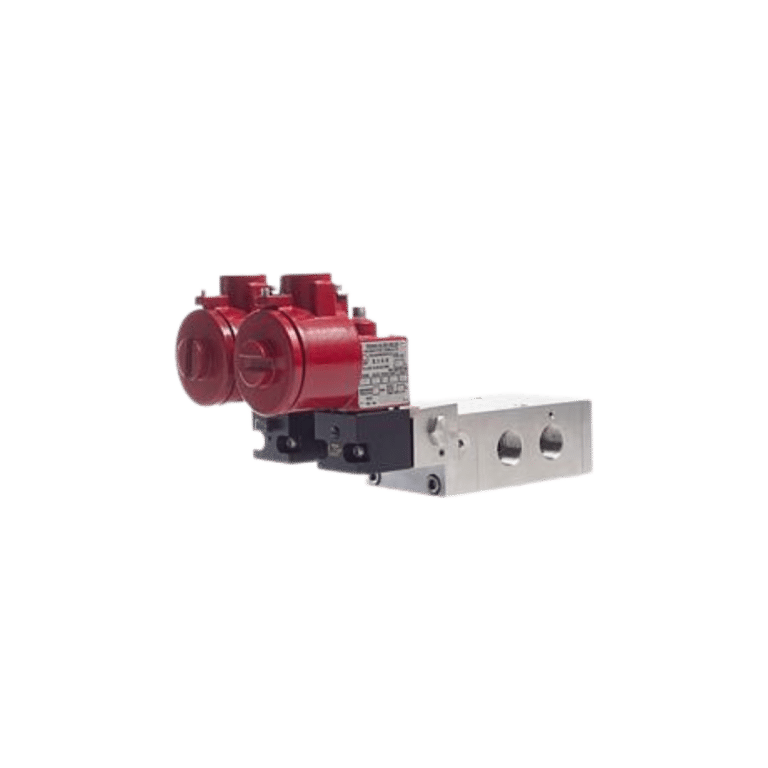

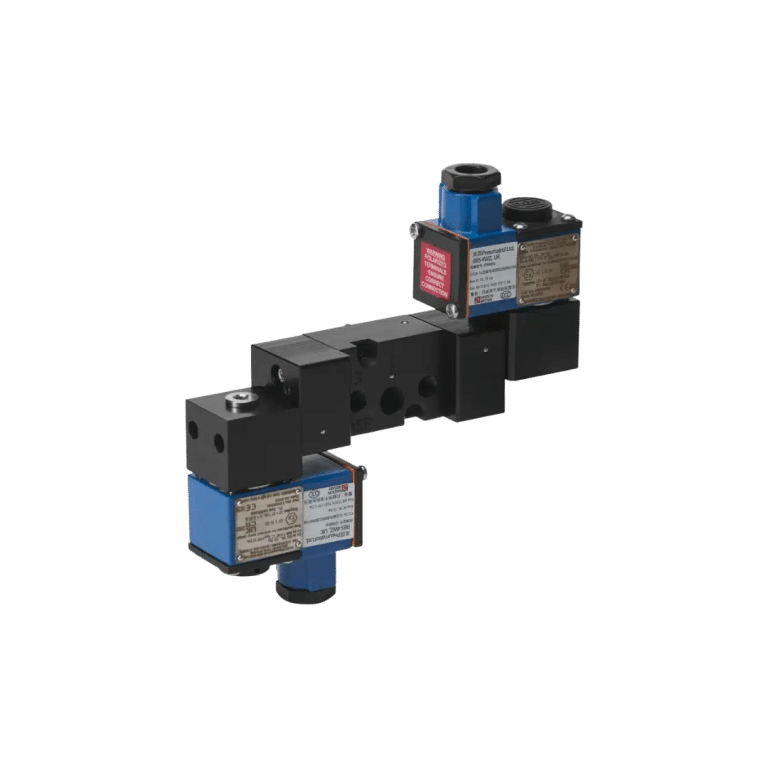

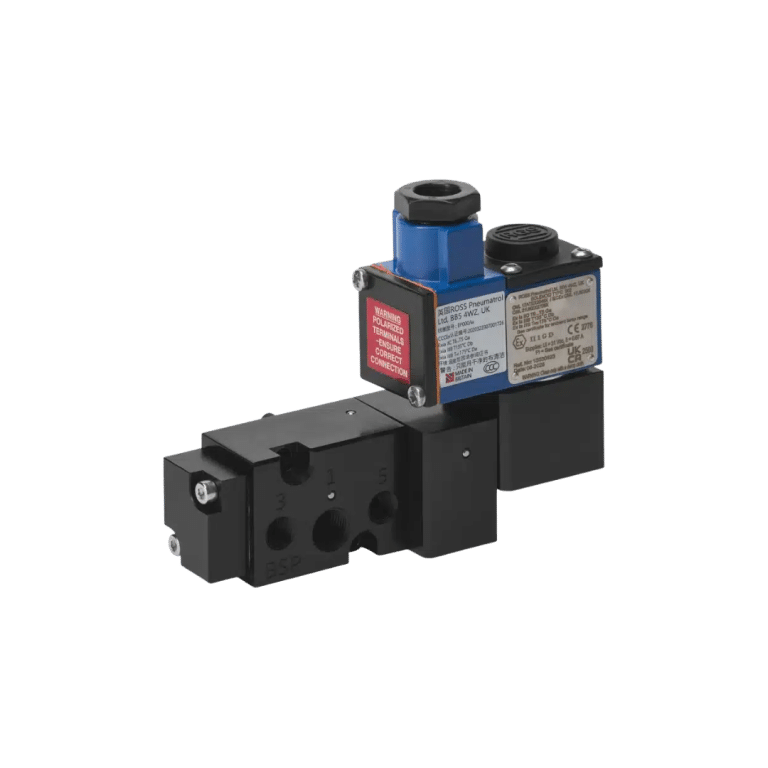

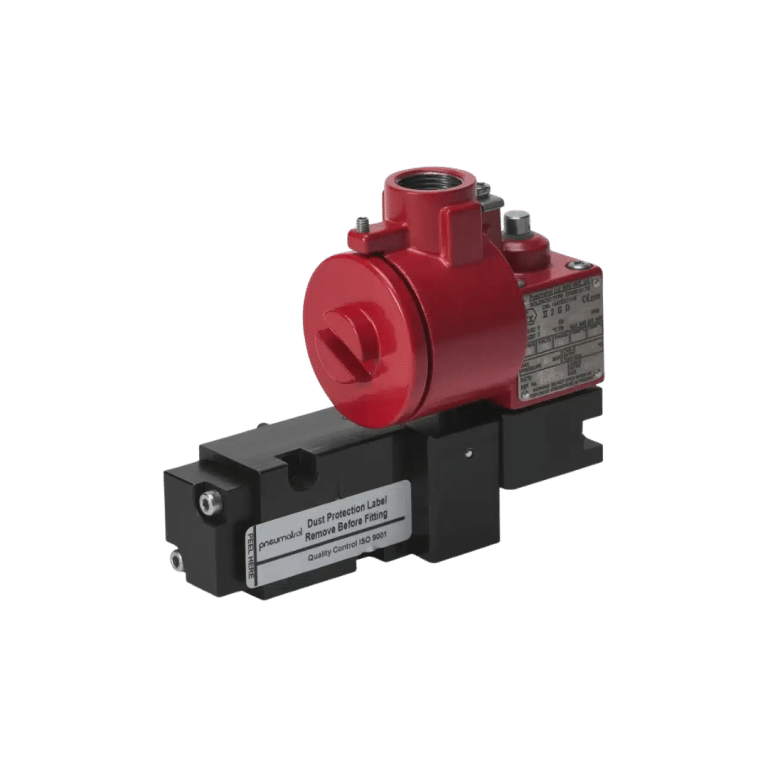

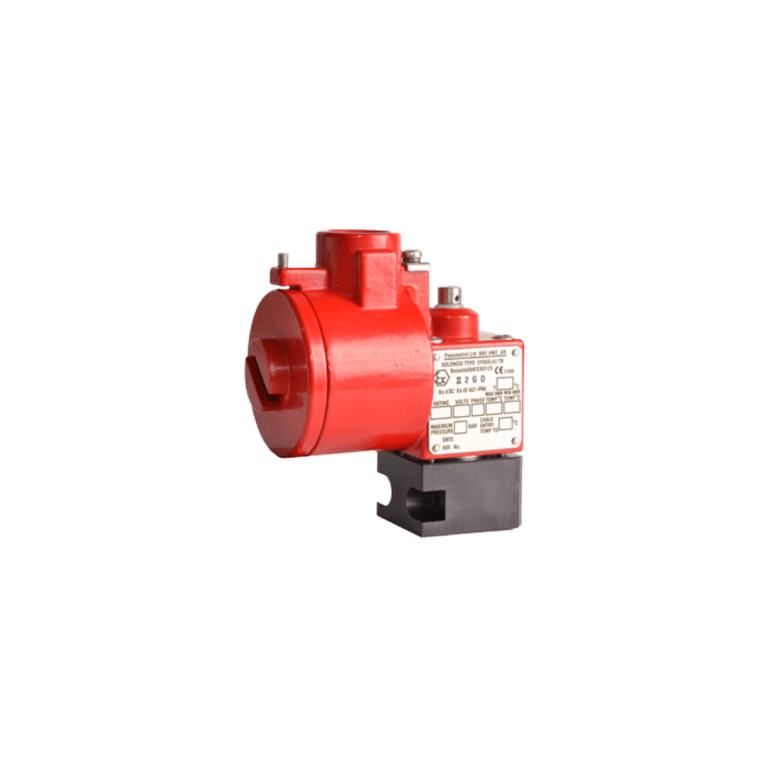

Pneumatrol Solenoids

Features

As a Pneumatrol distributor, we are proud to offer the complete Pneumatrol solenoid valve range to the market. Pneuamtrol are known for their high-quality, electrically operated valves designed for reliable control of air and gas in demanding industrial applications. Using an electromagnetic coil, they provide fast and accurate switching for on/off or directional flow control within pneumatic systems.



Designed around their robust construction and dependable performance, Pneumatrol solenoid valves are well suited to harsh and hazardous environments, offering excellent durability, safety, and operational efficiency. They are commonly used in industries such as oil and gas, process control, and automation where reliability is critical. We supply Pneumatrol solenoid valve solutions tailored to a wide range of system requirements, ensuring consistent performance and long service life.



Solenoid valve categories we support from stock range from: Namur Mount, Remote Mount, Cnomo, Banjo Mount. Other solenoid types also available.

Specification

MATERIAL SPECIFICATIONS

STANDARD
Body and End Caps Black Anodised Aluminium (Dural)
Spool Hard Anodised Aluminium PTFE Impregnated
Jet Brass
Spacers Glass Filled Acetal
Seals Nitrile (Alternative Seals Available)
Spring Music Wire
Mounting Screws Stainless Steel
Change Over Plate Nylon 66 30% Glass Filled
Gasket Nitrile



VALVE SPECIFICATIONS

Standard
Inlet Port Connection Size ¼” BSP
Exhaust Port Connection Size 1/8” BSP
Working Pressure 3 to 10 bar
Cv Factor 0.7
Flow Rate (at 6 bar with 1 bar pressure drop) 675 l/min
Maximum Ambient Temperature +80°C
Minimum Working Temperature -20°C
