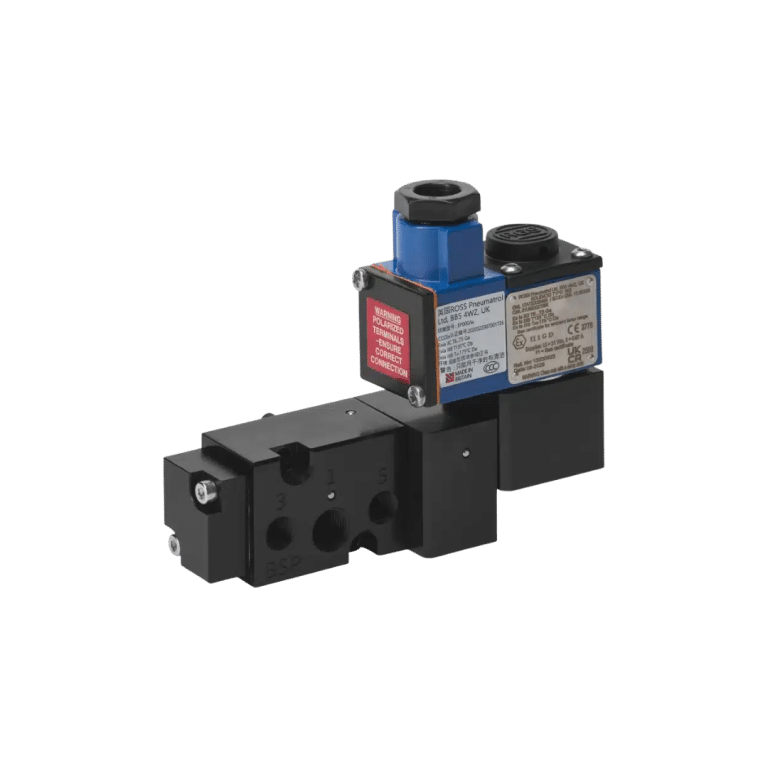

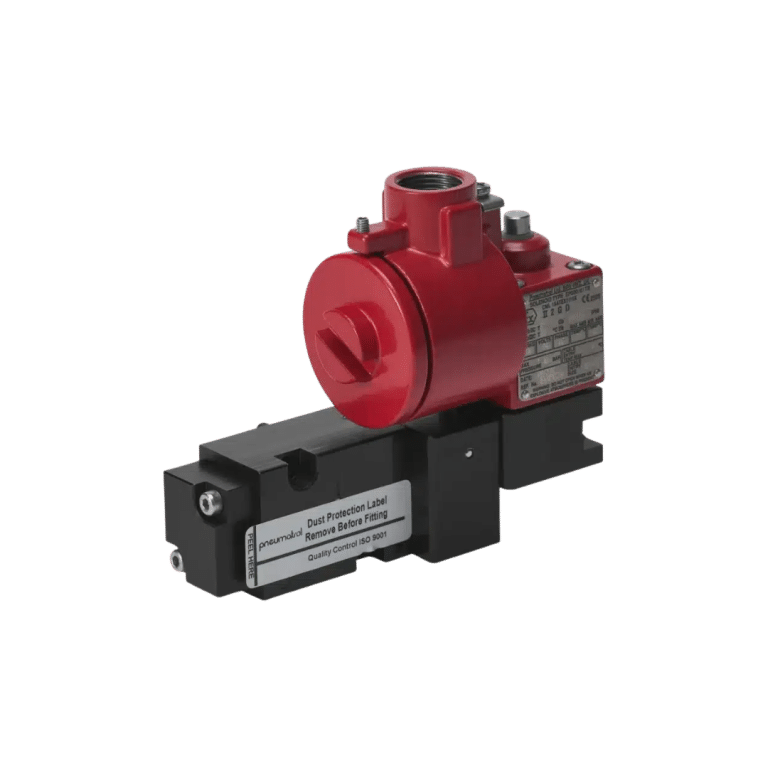

Compatible with all safe and hazardous area solenoids. Material options: Aluminium, Stainless Steel or Brass
MATERIAL SPECIFICATIONS |
STANDARD |
| Body and End Caps | Black Anodised Aluminium (Dural) |
| Spool | Hard Anodised Aluminium PTFE Impregnated |
| Spacers | Glass Filled Acetal |
| Seals | Nitrile |
| Spring | Music Wire |
| Mounting Screws | Stainless Steel |
| Change Over Plate | Nylon 66 30% Glass Filled |
VALVE SPECIFICATIONS |
Standard |
| Port Connection Size | 1/4” BSP |
| Working Pressure Internal Pilot Version | 3 to 10 bar |
| Working Pressure External Pilot Version | 3 to 10 bar |
| Minimum External Pilot Pressure | 3 bar |
| Cv Factor | 1.1 |
| Flow Rate (at 6 bar with 1 bar pressure drop) | 1050 l/min |
| Maximum Ambient Temperature | +80°C |
| Minimum Working Temperature | -20°C |
