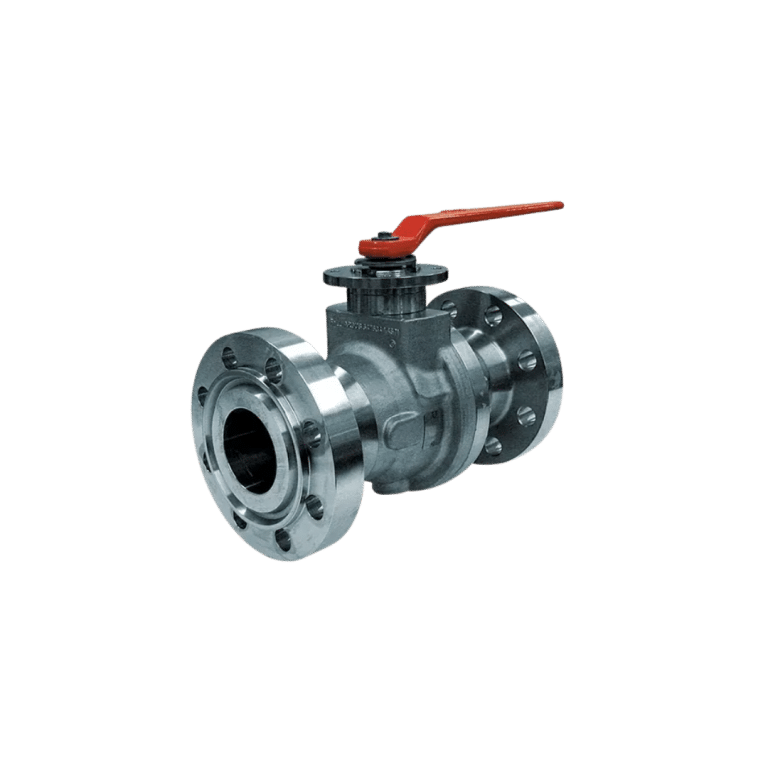

Argus FK76M trunnion mounted ball valves are engineered to deliver long-lasting, tight shut-off performance in oil and gas, petrochemical and chemical industry applications. It features a modular design that allows simplified adaptation to diverse safety, emissions and performance requirements. The FK76M ball valve is available in standard and severe service designs and offers metal-seated and soft-seated configurations for reliable sealing performance.

Features and Benefits:

• Long service life in severe applications owing to chemical coating and high-performance cladding
• Reliability ensured by seat design to FCI 70-2 Class VI, enabling it to meet the highest demands with zero tightness
• Reduced replacement cost as performance capabilities of valves can be easily upgraded and coatings can be applied to suit different applications
• Improved plant and personnel safety from valve design, which meets fugitive emission standard ISO 15848

Special Configurations Available:

• Extreme High Cycle
  Stem supported in bearings to ensure seals are free from operation loads. Special bearing configurations, including cladding of critical areas and trim coating configurations, improve valve life-time.
• Extreme High Temperature
  Designed for temperatures up to +1022°F for the highest demands on valve tightness in process and to atmosphere (FE).
• Solid Transport
  Chambered ball seats, seat pocket body design, stem seal protection and flushing system designs support valve performance and extend service life-time.
• Severe Service
  Process optimised coatings, cladding option and wearing protection feature for extended ball valve life-time.
• Flushing Systems
  Flushing options in critical valve areas (e.g., on seats, stem or cavity) avoid media build up to improve service-life time.
• Oxygen Service
  High performance designs for high pressure, metal to metal seat gas tightness solutions in oxygen service. In-house clean-room assembly and testing.
• Special Alloys
  Process and application related special alloys (e.g., Inconel, Monel, Alloy20, Titanium)
• Special Applications
  Product discharge valves, valve internal cladding for critical areas in abrasive and erosive environment, and ESD (Emerging Shut Down valves) units.
