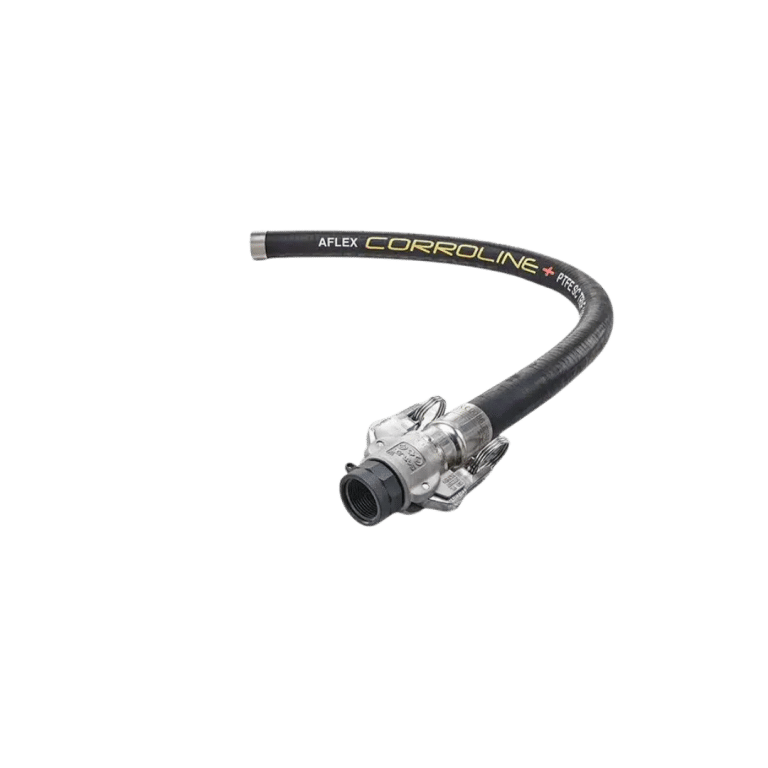

Tough chemical and industrial smooth bore hose with the added benefit of reinforcing to withstand the most severe conditions of physical abuse. Corroline+ is a kink resistant, flexible hose.
| Nominal bore size | 13 – 80 mm |
| Nominal bore size | 0.5 – 3 in |
| Outside diameter | 21.5 – 92.8 mm |
| Outside diameter | 0.85 – 3.65 in |
| Max. operating pressure | 69 bar |
| Max. operating pressure | 1000 psi |
| Certification and compliance | 3.1 Traceability, ATEX, EN16643:2016, EU Regulation 10/2011, FDA (materials), Fireproof to BS5173 section 103.13 part 6.2 and 6.3 |
| Bend radius | 38 – 350 mm |
| Bend radius | 1.375 – 13.75 in |
| Cover | EPDM |
